ABM 12 Channel ECG Machine- ECG 12i is a portable 12.1″ color touchscreen ECG machine with a hidden handle for easy carrying. It can store over 400 ECG reports and connects to a PC via USB, RS232, or optional LAN using ECG workstation software. Powered by a built-in rechargeable Li-ion battery and AC/DC conversion, it supports 100–240V input. With automatic measurement, analysis, and diagnostics, it enhances efficiency and reduces the clinician’s workload.

• Model: ABM ECG 12i (also marketed as “Twelve Channel ECG Machine – ECG 12i”)

• Display Size: 12.1″ color touch-screen display.

• 12.1″ inch color touch screen display

• Portable design with hidden handle, convenient to carry.

• The machine can store over 400 ECG reports inside

• Connect with PC via ECG workstation software by USB or RS232. LAN can be chosen.

• Built-in rechargeable Li-ion battery (14.8V/4000mAh), AC/DC power conversion. Adapt to 100-240V, 50/60Hz AC power supply.

• Automatic measurement, calculation, analysis, waveform freezing. Auto analyze and auto-diagnostic can reduce doctor’s burden and improve working efficiency.

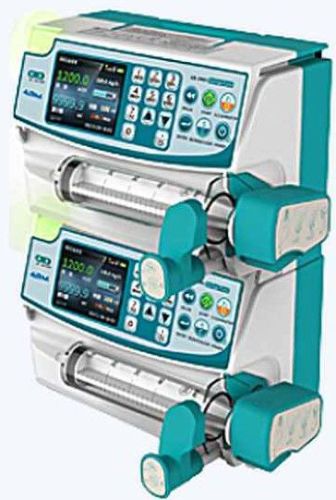

The ABM AB 200S Syringe Pump is a medical infusion pump that uses a syringe instead of an intravenous bag. It has 12 infusion modes, including rate mode, time mode, body weight mode, and intermittent infusion mode. The pump also has a large, colorful LCD display, history records, an RS232 interface, adjustable buzzer volume, and an anti-bolus function.

• 2.9 inch color display

• Weight is 1.7Kg

• Flow rate- 0.1-1800 ml/hr

• Various brands of Sterile syringe: 5ml, 10ml, 20ml,30ml,50ml,/60ml

• 12-infusion modes: Rate mode, time mode,body weight mode,intermittent infusion mode,Drug library mode,TIVA mode, programmable mode,TPN mode, shift mode,dose mode, Load dose mode,micro mode.

• 90° rotable pole clamp convenient for horizontal bar & vertical IV pole

• Anti – Bolus function 1600 history records.

• RS 232 and USB data interface

• Screen lock facility

• Total 884 drugs in drug library

• 7 hrs of continous operation.

• main unit,

•  power cord

•  user manual

• One Year Warranty

The ABM IBG 15 is a blood gas chemistry analyzer. It is a small, portable device that weighs up to 6.5 kg and has a 2.1-inch LCD touch screen display. It is suitable for capillary and syringe samples and can analyze whole blood.

The ABM F12I Fetal Monitor is a fetal monitoring machine that has a 12.1 inch color LED display. It has a flexible, lightweight design and is easy to operate. It can store, review, and print 60 hours of CTG

• 12.1 inch color LED Display
• Flexible ,light design, easy operation
• 60 hours CTG storage, reviewing, print
• Standard parameter :-FHR,TOCO,FM
• Optional parameter:- ECG, SPO2, NIBP
• Flip screen form 0 to 90 degree, large font
• Optional:- fetal wakeup function
• 3.5 hrs. for battery life
• 150/152 mm side paper
• 50 group alarm events reviewing
• Multi interfaces display
• power fail data Storage
• Simultaneously maternal & fetal Parameter display

• One Year Warranty

• Unique thoracic impedance & nasal tube double model respiration test method (when patient cannot lay down quietly, only nasal tube respiration can detect the right respiration waveform and respiration rate).

• 12.1’’ color TFT LCD screen, High brightness, Wide viewing, 7 waveforms can be displayed on the same screen ,brightness and volume are adjustable independently.

• Streamlined outline design with sense of the times & foldable handle.

•  Multi-language interface selection: Chinese, English, Spanish, Portuguese, French, Arabic, Russian, Italian, Turkish, etc.

• User-friendly and man-machine dialogue interface with pop-up menus, dialogue boxes, rotary mouse and etc.

• Low-power consumption design with standby mode, rechargeable high-energy built-in battery.

• Blood pressure measurement fast and accuratly, with venipuncture function.

• Advanced digital technology, accurately measure SpO2 in low perfusion situation.

• Drug calculation, ST-segment detection, pacemaker and arrhythmia analysis.

• Display format include OxyCRG diagram, 7-lead ECG waveform, big-font mode simultaneously

•  Sound and light integrated alarm, Alarm parameters can be adjusted to upper or lower.

• Suitable for adults, pediatrics and neonates

• Require the 168 hrs of graphical & tabular storage, 4000 sets of NIBP Storage .

• Central monitoring station supports the connection with up to 64 leadsides

• Applications in bedside and delivery monitoring; Widely used in patient room, emergency room, operation room, PACU, ICU, CCU, etc.

• High capacity internal storage for the 15000 trends or 4000 graphics of data.

• Ethernet, wifi & 3G connection for transfer data farm anywhere & anytime .

• Optional:- SunTech NIBP/nellcor spo2/masimo spo2,printer,12 lead ecer T.S +cardiac O/P, ETCO2,2-IBP

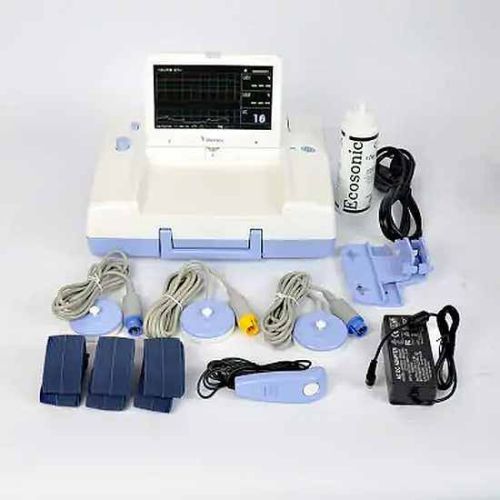

Bistos BT350 Fetal Monitor CTG Machine indicates FHR as numeral by irradiating ultrasound at the abdomen, abstracting Doppler frequency of heart oeat cycle from the signals reflected from fetal heart, and outputting FHR change as s sound, and analyzing these signals. Bes des, you can measure UC oy using pressure sensor. BT-350 prints FHR, UC, and FM on the thermal paper and displays them on the LCD display. Especially, the doppler probe has 9 crystal sensors for catching FHR effectively, and it is water-proof type. BT-350 has 2 kinds of installation functions such as notebook, and wall mount.

• FHR Range (BPM) 30 ~ 240 / 50 ~ 210

• UC Probe External type

• UC Range 0 – 99

• Display Type 7” Color LCD

• Trend Data Save 450 Hours

• Alarm Sound Level 2 levels

• Alarm Sound Tachycardia, Bradycardia

• Information Sound Probe Disconnection, Printer door open, No Paper, Low Battery

• Printer Speed 1, 2, 3cm/minute, 10cm/min(Trend mode only)

• Thermal Paper (Z-fold) 150mm(W) x 13.5m(L)

• Auto Print 10, 20, 30, 40, 50, 60minute

• PC Interface RS-232C / Ethernet

• Power AC100-240V (50/60Hz) DC18V/2.5A

• Weight (Kg) 2.8

• Battery Life (h) -Optional 3-5

• BT-350 LCD – displays trace and numbers. Stored data can be reviewed afterward.

• CTG Analysis* – calculates important data such as baseline, Acceleration, Deceleration, fetal movement.

• Cross Channel Verification – prevent the FHR is miscalculated by twin fetus by an alarm.

• Multi-Language Support* – 13 languages including English, Chinese, Spanish, German, Russian, Portuguese

• BT-350 LED – displays numbers only. A large and bright LED is visible from a
  distance.

• Various Paper Selection – BT-350 can use two most usual papers in the market (30-240bpm / 50-210bpmUSB Data Save – FHR and UC trend data can be exported to USB memory stick and it can be managed by BCM-350 Central Monitoring Software

• Central Monitoring Software – Works on BCM-350 software along with other Fetal monitors by wire or wireless

• Portability – Compact design with built-in handle enable portable use especially to midwives
  Rechargeable Battery (Optional)* – Li-ion battery enable BT-300 can operate without AC power up to 3 hours

• Waterproof probe – All probes are waterproof and ready for a water birth (IPX8).

• Offset DOP2 FHR – This function makes DOP2 FHR 20 bpm higher to enhance DOP2 trend easy to read.

• Acoustic Stimulator* – Stimulate sleeping fetus to speed up the test or to
  facilitate further evaluation of the non-stress test (NST).

• Zoom-in Function – Enlarge FHR graph scale on the paper to examine the trend with more dynamics by focusing FHR range to the most frequent area

• Connection – Maximum connection: 16 monitors, Wire connection: RS-232C, LAN*Wireless connection: Bluetooth (optional)

• Various Bed Display mode – Various styles of Bed display can satisfy every user with their own preference.

• 2 Doppler Probe (FHR), 1 UC Contraction Probe

• Event Marker, AST Probe (Option)

• 2x Z-folded type Paper, Probe Belts

• Power Cord & Power Adaptor

• Battery (Optional)

• Ultrasound Gel

• One Year Warranty

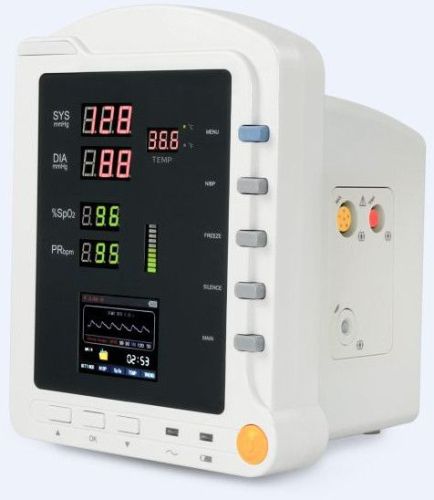

CMS5100 Patient Monitor adopts Oscillometry for NIBP measuring, Photoelectric Oxyhemoglobin Inspection Technology combining Capacity Pulse Scanning & Recording Technology for SpO2 measuring. Systolic Pressure(SYS), Diastolic Pressure(DIA), Mean Pressure(MAP), SpO2 and Pulse rate(PR) can be accurately measured. Compact appearance, comprehensive functions, simple and convenient operation, which is applicable for hospitals, community medical treatment and family

NIBP:

Method: Oscillometry
Mode: Manual/Auto/Continuous
Measurement Range: 25-260mmHg
Resolution: 1mmHg
NIBP Accuracy: ±5mmHg
Alarm: SYS/DIA/MAP
SpO2:

Measurement range: 0%-100%
Resolution: 1%
Accuracy: ±2% (70%-100%) 0%-69% unspecified.
Alarm range: 0-100%
Pulse Rate:

Measurement range: 10 – 270
Resolution: 1bpm
Accuracy: ±2pm or ±2%
Temperature:Can measure temperature of adults, pediatric and neonatal patients

• Built-in rechargeable Li-polymer battery for uninterrupted monitoring.

• Unique Flash memory, storage for up to 2000 NIBP data and 78000 SpO2 data.

• User-friendly interface with 2.8” (320×240) color TFT LCD and red and yellow highlight LED.

• Be applicable for adult, pediatric and neonatal for all-round monitoring, easy operation and high cost performance.

• Be applicable for medicine, surgery, operating room, ICU/CCU, emergency room, obstetrics and gynecology, pediatrics.

• Compact and flexible appearance, easy for carrying and be suitable for indoor and outdoor(in ambulance) monitoring.

• Convenient and quick in inquiring measurement data, review for NIBP trend graph within 24-hour and SpO2 and Pulse rate(PR) trend graph within 20-hour.

• Visual and audible alarm for Systolic Pressure(SYS), Diastolic Pressure(DIA), Mean Pressure(MAP), SpO2 and Pulse rate(PR), and upper and lower limit of alarm can be set.

• Monitor

• Power connector and adaptor

• Adult cuff cable

• SpO2 probe

• Temperature probe

• User manual

• One Year Warranty

• Dimension (LxWxH): 191 x 160 x 244 (mm)

• Net Weight: 1.5 kg

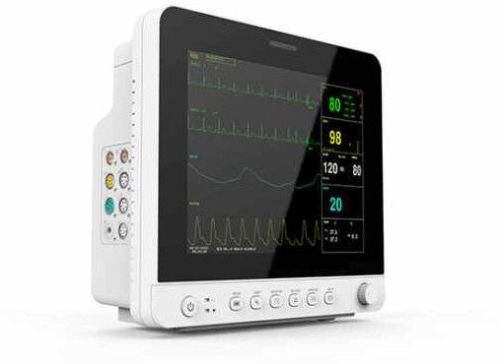

The monitor has abundant functions that can be used for clinical monitoring with adult, pediatric and neonate. Users may select different parameter configuration according to different requirements. The monitor, power supplied by 100-240V～,50/60Hz, adopts 12.1” color TFT LCD displaying real-time date and waveform. It can synchronously display eight-channel waveform and full monitoring parameters equipped with an optional 48mm thermal recorder. The monitor can be connected to the central monitoring system via wire or wireless network to form a network monitoring system. This device can monitor such parameters as ECG, RESP, NIBP, SpO2, and dual-channel TEMP, etc. It integrates parameter measurement module, display and recorder in one device to form a compact and portable equipment. Its replaceable internal battery brings lot of convenient for patient moving.

• Standard parameters: ECG, RESP, SpO2, PR, NIBP, dual-channel TEMP

• ECG Heart rate(HR)
  ECG waveform Arrhythmia and ST-segment analysis

• RESP Respiration rate(RR)
  Respiration waveform

• SpO2 Oxygen saturation(SpO2)
  Plethysmogram(PLETH) waveform
  Pulse rate(PR)
  Bar graph

• NIBP Systolic pressure(SYS), Diastolic pressure(DIA), Mean pressure(MEAN)

• TEMP T1, T2, TD

• IBP(optional) CH1：SYS，DIA，MAP
  CH2：SYS，DIA，MAP
  IBP waveform

• CO2(optional) EtCO2
  InsCO2:Inspired Minimum CO2 AwRR: Air Way Respiration

• It has abundant functions, such as audible and visual alarm, trend data storage and output, NIBP measurement, alarm event marking and drug concentration calculation, etc.

• 12.1” color TFT LCD displaying real-time date and waveform.

• Monitors parameters such as ECG, RESP, NIBP, SpO2, and dual-channel TEMP, etc.

• Heart rate variability (HRV) analysis function.

• NIBP measurement mode: Manual/AUTO/STAT, storage for 4800-group NIBP data.

• Drug concentration calculation and titration table functions.

• Battery Backup

• Power supply – 100-240V～50/60Hz

• CE & FDA Approved

• Highly accurate

• Monitor

• Power connector

• BP Cuff & Hose

• ECG leads

• SpO2 probe

• Temperature probe

• User manual

• Optional Accessories: Side Stream ETCO2, Main Stream ETCO2, IBP and Printer

• One Year Warranty

CMS5100 Patient Monitor adopts Oscillometry for NIBP measuring, Photoelectric Oxyhemoglobin Inspection Technology combining Capacity Pulse Scanning & Recording Technology for SpO2 measuring. Systolic Pressure(SYS), Diastolic Pressure(DIA), Mean Pressure(MAP), SpO2 and Pulse rate(PR) can be accurately measured. Compact appearance, comprehensive functions, simple and convenient operation, which is applicable for hospitals, community medical treatment and family

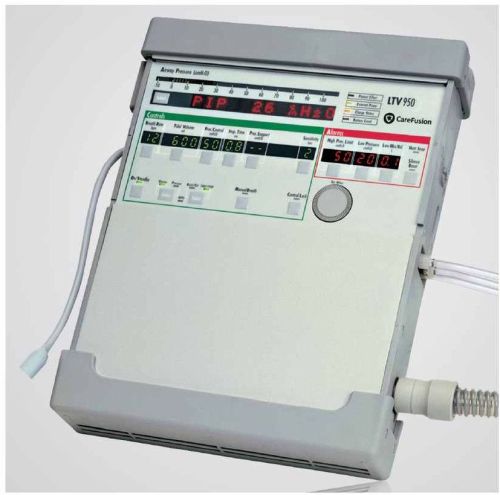

Refurbrished The LTV 950 is a transport ventilator that offers variable rise time, sensitivity flow trigger, and flow termination. It also has a respiratory rate of 0–80 bpm and a tidal volume of 50–2000 ml.The LTV is specifically designed for the dynamic environment of portable ventilation, whether in-home care, intra-hospital transport or emergency care settings. The lightweight, slim profile design with hot-swappable batteries provides the necessary tools to meet the demands of patients on the move that weigh at least 5 kg.

• Brand: LTV

• Ventilator Type: Mechanical Ventilator

• Alarm Functions: Apnea Interval, High Pressure Limit, Low Peak Pressure, Low Minute

• Volume & High Rate Flow

• PC/PS/Spont: 160 Ipm

• Pressure control

• Pressure support

• NPPV

• Adjustable flow-triggering

• Apnea backup mode

• Volume control

• Flow-triggering

• Leak compensation

• Multiple power source

• Weight : 5kg

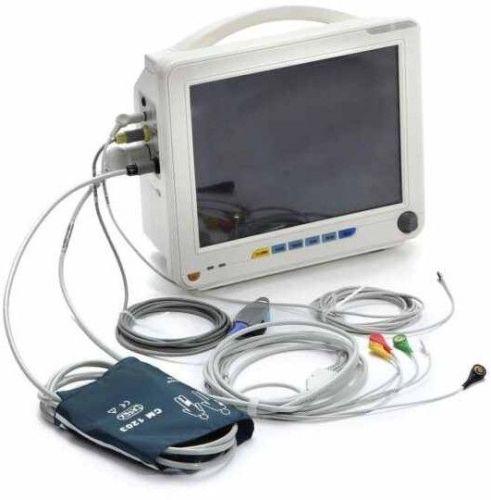

AQUA 12 multipara patient monitor is robust patient monitor, small enough to move around, yet flexible enough to adapt to your particular needs. With a variety of optional extras,including arrhythmia and ST analysis, ETCO2 measurement and double IBP, AQUA 12 multiparameter patient monitor is configurable to suit your requirements. rich in functions, conveniently adaptable and pleasingly affordable, AQUA 12 multi parameter patient monitor may be just the monitor for your depatment.

• ECG Lead Mode- 5 lead

• Display – 12.1″

• Suitable for Neonatal, Pediatric, Adult

• NIBP Mode- Manual

• ECG Lead Selection – avR, avL, 1, 2, 3

• ECG Waveform – 5 Channels

• Screen: 12 inch

• Parameters: ECG/RESP, SpO2 , NIBP

• Color: White

• 12 inch high-resolution color screen

• Exquisite design suitable to moving operation

• Operation interface: Standard, Trend Screen, oxyCRG Screen, NIBP List, Big front Screen

• Freeze instant waveform for real time S-T segment analysis, pace-maker detection

• Storage for up to 400 groups of NIBP list, 60 alarm events records recall

• Built-in rechargeable lithium battery with 4hours working capacity

• Capture dynamic wave forms

• Patient info input management function

• One Year Warranty
